iFIX Adapter

Overview

iFIX Adapter enables existing or new source systems to integrate seamlessly with iFIX. iFIX Adapter has been developed as a reference implementation for developers of source systems who want to integrate their departmental system with iFIX.
iFix Adapter works as a mediator between iFIX and its clients. This system will receive requests from the client system and converts the data into the iFIX fiscal event or associated formats.

Pre-requisites

Before you proceed with the configuration, make sure the following pre-requisites are met -
  • Java 8
  • Kafka server is up and running
  • PSQL server is running
  • Redis
  • Following services should be up and running:
    • Client Service Like mgramseva-ifix-adapter
    • Target service IFIX- fiscal-event-service
    • Target Service IFIX-keycloak

Key Functionalities

  • iFIX client requests pushed to IFIX
  • Auth token is fetched from keycloak and cached. Token will be re-fetched 5 minutes before expiry
  • Every push to iFIX is recoded with http status
    • status series 200 series considered success
    • status 400 are marked client error and reported back to client
    • status 500 resubmitted by scheduler

Deployment Details

  1. 1.
    Update the keycloak credentials client-id and secrets in the environment file
  2. 2.
    Map the coa in HeadCodeToCoaMapping.yml
  3. 3.
    Map project in ProjectMapping.yml
  4. 4.
    Deploy the latest version of ifix-reference-adapter

Configuration Details

  1. 1.
    Update Key cloak credentials in dev.yaml, qa.yaml, prod.yaml according to environment

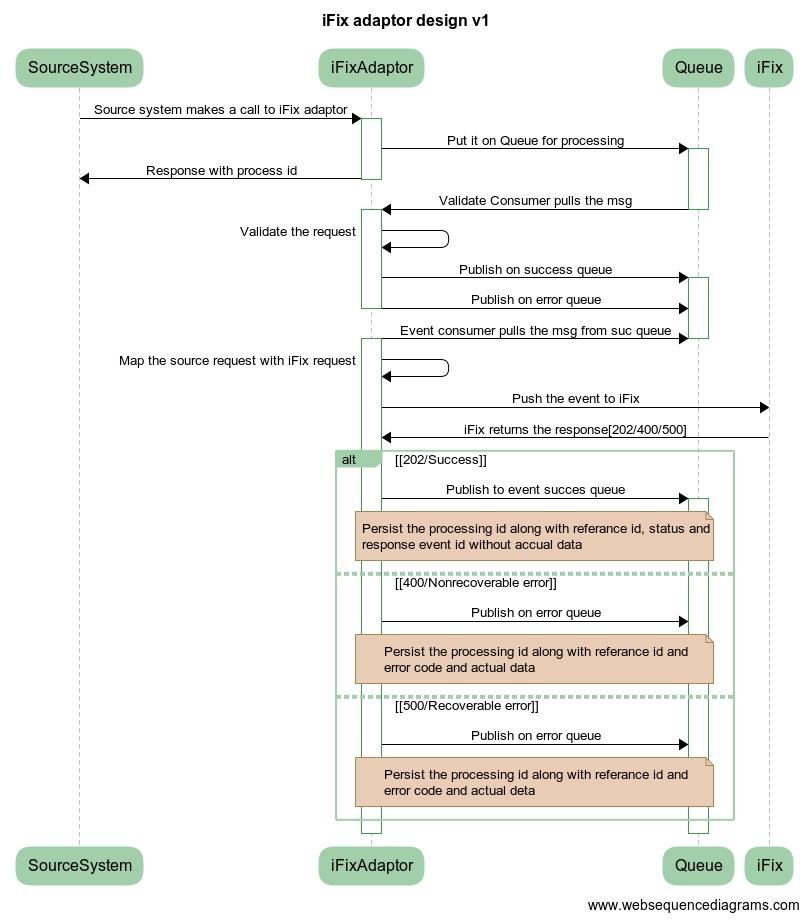

Interaction Diagram
