mGramSeva iFIX Adapter Service


Ifix-Adapter is a system that works as a mediator between iFIX and its clients. This system will receive requests from the client system and convert the data in the iFIX required format This document contains the details on how to set up the iFIX-adapter service and describes the functionalities it supports. It supports multiple events (Event Array) in a single request.


Before you proceed with the configuration, make sure the following pre-requisites are met -

  • Java 8

  • Kafka server is up and running

  • PSQL server is running

  • Redis

  • Following services should be up and running:

    • Client Service Like mgramseva-ifix-adapter

    • Target service IFIX- fiscal-event-service

    • Target Service IFIX-keycloak

    • Adapter master data service

Key Functionalities

  • IFIX client requests are pushed to IFIX.

  • The authentication token is fetched from keycloak and cached. Token is re-fetched 5 minutes before expiry.

  • project_id from request data is getting treated as Department Entity Code to fetch Department Entity.

  • COA Code fetched from COA Mapping table by client code and cached it in Redis Server.

  • Every push to IFIX is recorded in the table with HTTP status

    • status series 200 considered success

    • status 400 are marked client error

  • It collects projectId form request data and treats it as department_entity_code and calls search API to Department Entity Service. It always expects it will receive only one Department Entity against a single department_entity_code, if it finds multiple raise an error message.

  • One project can have multiple department entities but vice-versa cannot be true. In case of multiple projects for one department entity - the system will raise an error message.

Deployment Details

Deploy the latest version of the ifix-reference-adapter.

Environment Variables



Topic in which client requests are put. From this further listen and posting happens

Host name of the key cloak authentication token provider


key cloak authentication token url


userid of for authentication token


password for authentication token

host name of IFIX server



Host name of the redis server


top level tenant id of the client

dialect for JPA. you can change this to oracle or my sql etc

will generate the required tables in the respective database . This feature is used instead of flyway to get database in-dependency

Configuration Details

  1. Update Key cloak credentials in dev.yaml,qa.yaml,prod.yaml according to the environment The credentials are “keycloak.credentials.clientid and “keycloak.credentials.clientsecret” Example is given in here and here

  2. Map clientcode, ifixcoacode, ifixid in ifix_adapter_coa_map table

    • “clientcode” is the tax head like “WATER_CHARGES” or ‘10011’ used in IFIX client like mgramseva

    • “ifixcoacode” is the 16 digit glcode in IFIX. 16 digit code is mapped then this can be ported to any environment like dev to qa ,or qa to uat or from uat to prod. Prefer mapping ifixcoacode

    • example is INSERT INTO public.ifix_adapter_coa_map(id, clientcode, ifixcoacode, ifixid, tenantid) VALUES (1,'10101', '0215-01-102-00-00-01', '6cbcb4a1-2431-4f78-89d7-b4f0565aba37', 'pb');

  3. state.goverment.code set this value to the clients top level tenant_id

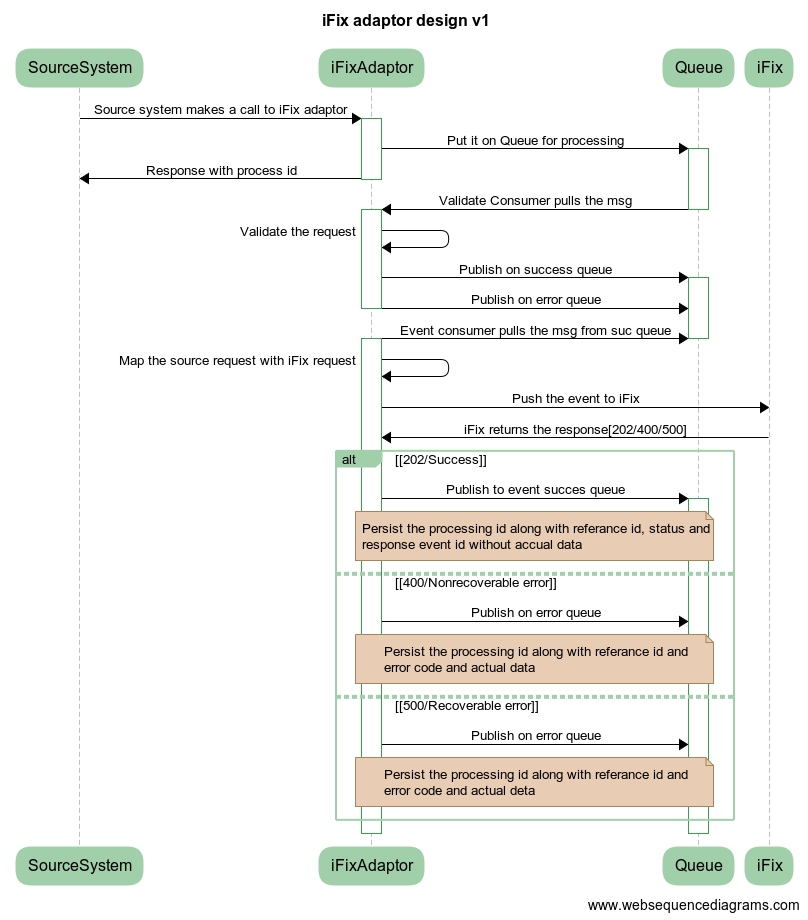

Interaction Diagram

Reference Docs

API List




Api for receiving data from client (mgram). This is the only api present in adapter
