Overview

The DIGIT Exchange Service is a robust data interchange platform designed to facilitate the seamless and secure exchange of digital information between two endpoints. Built with a fixed schema for headers and dynamic messaging capabilities, this service ensures reliable communication while prioritizing data integrity and confidentiality.

Dependencies

DIGIT-exchange can implement any service if it has the same request structure as the program.

API Specifications

Base Path: /digit-exchange/

API Contract Link

API spec Click below to view it in Swagger Editor.

APIs

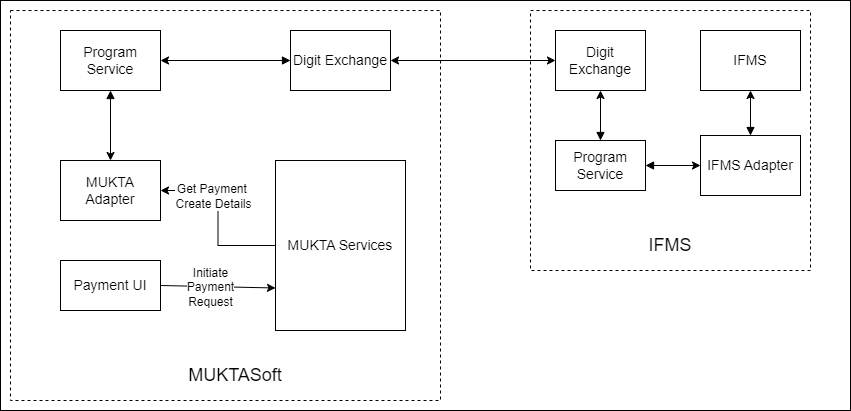

Exchange Flow

Data Model

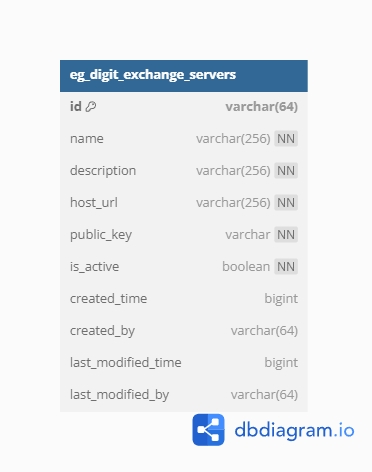

DB Schema Diagram

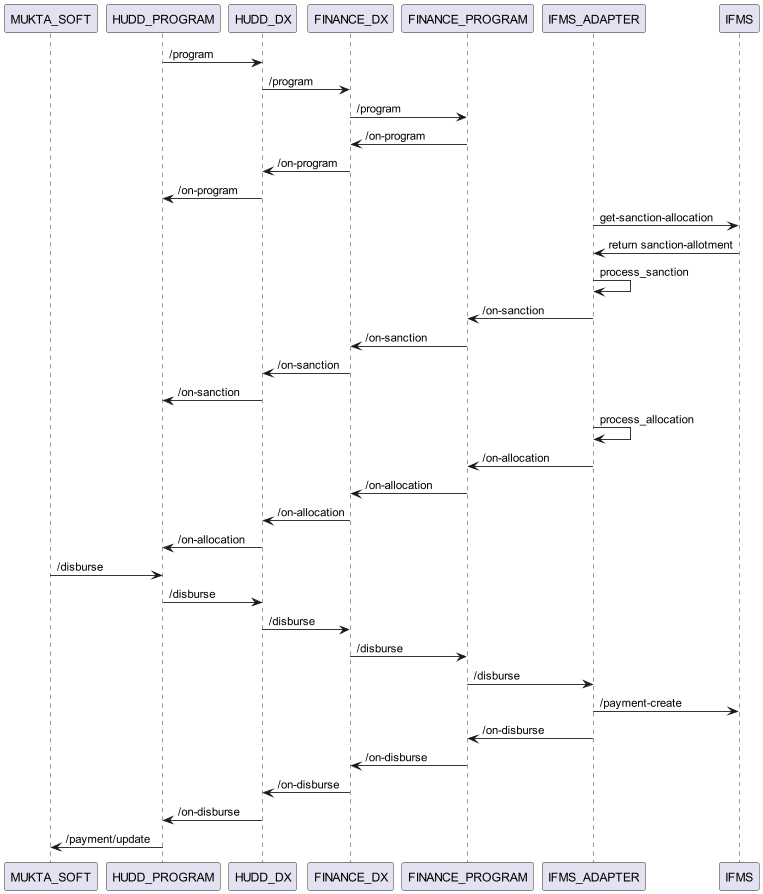

Web Sequence Diagrams

Sequence of exchange between two environments

Exchange Service example of an exchange

Program Service
YAML is here.
  • Overview
  • Dependencies
  • API Specifications
  • API Contract Link
  • APIs
  • POST/digit-exchange/v1/exchange/{EXCHANGE_TYPE}
  • Exchange Flow
  • Data Model
  • DB Schema Diagram
  • Web Sequence Diagrams

/digit-exchange/v1/exchange/{EXCHANGE_TYPE}

post

Enables exchange of program, on-program, sanction, on-sanction etc

Body
signaturestringRequired

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==
headerall ofRequired
and
messagestringRequiredExample: {"location_code":"pg.citya","name":"Test 1","start_date":0,"end_date":0,"client_host_url":"https://unified-dev.digit.org","function_code":"string","administration_code":"string","recipient_segment_code":"string","economic_segment_code":"string","source_of_fund_code":"string","target_segment_code":"string","currency_code":"string","locale_code":"string","status":{"status_code":"RECEIVED","status_message":"string"}}
Responses
401
HTTP layer error details
application/json
403
HTTP layer error details
application/json
500
HTTP layer error details
application/json
default
Acknowledgement of message received after successful validation of message and signature
application/json
post
POST /digit-exchange/v1/exchange/EXCHANGE_TYPE HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 1106

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "123",
    "message_ts": "text",
    "action": "create",
    "sender_id": "program@https://spp.example.org",
    "sender_uri": "https://spp.example.org/{namespace}/callback/on-create",
    "receiver_id": "program@https://pymts.example.org",
    "is_msg_encrypted": true
  },
  "message": "{\"location_code\":\"pg.citya\",\"name\":\"Test 1\",\"start_date\":0,\"end_date\":0,\"client_host_url\":\"https://unified-dev.digit.org\",\"function_code\":\"string\",\"administration_code\":\"string\",\"recipient_segment_code\":\"string\",\"economic_segment_code\":\"string\",\"source_of_fund_code\":\"string\",\"target_segment_code\":\"string\",\"currency_code\":\"string\",\"locale_code\":\"string\",\"status\":{\"status_code\":\"RECEIVED\",\"status_message\":\"string\"}}"
}
{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}
LogoSwagger Editor
