Program Service

Overview

The Program Service is constructed using iFIX specifications and serves as an extensive platform aimed at simplifying program creation, sanction management, fund allocation, and disbursement execution. It equips organizations with essential tools to effectively oversee available funds and guarantee transparent and accountable distribution to designated beneficiaries.

Functional Overview

Funds Summary

1. IFMS adapter manages funds summary based on the head of accounts and SSU codes. It creates sanctions for each head of accounts and SSU details based on ULB tenant ID.

2. Three types of transactions can be received from the JIT VA API -

   • Initial Allotment - A new sanction will be created only if AllotmentTxnType is Initial Allotment.

   • Additional allotment - For this type of transaction it will update the amount of existing sanction.

   • Allotment withdrawal - It deducts the transaction amount from the sanction for this type of transaction.

Payment Instructions

• When a bill is approved this service creates payment using the expense service.

• Some consumers keep listening to the payment create Kafka topic and generate payment instructions (PI) using payment and bill details and post the PI to the IFMS system using JIT API.

• A new PI will be generated when enough funds are available for any head of accounts for that tenantId.

• Before posting the PI there were multiple enrichments like bank account details, org and individual details, etc.

• After creating the PI it deducts the available balance from the funds summary.

• If a PI is created for any payment then the user can not generate a PI again till the PI fails.

• It keeps a log of each status call of PI and saves it in the DB

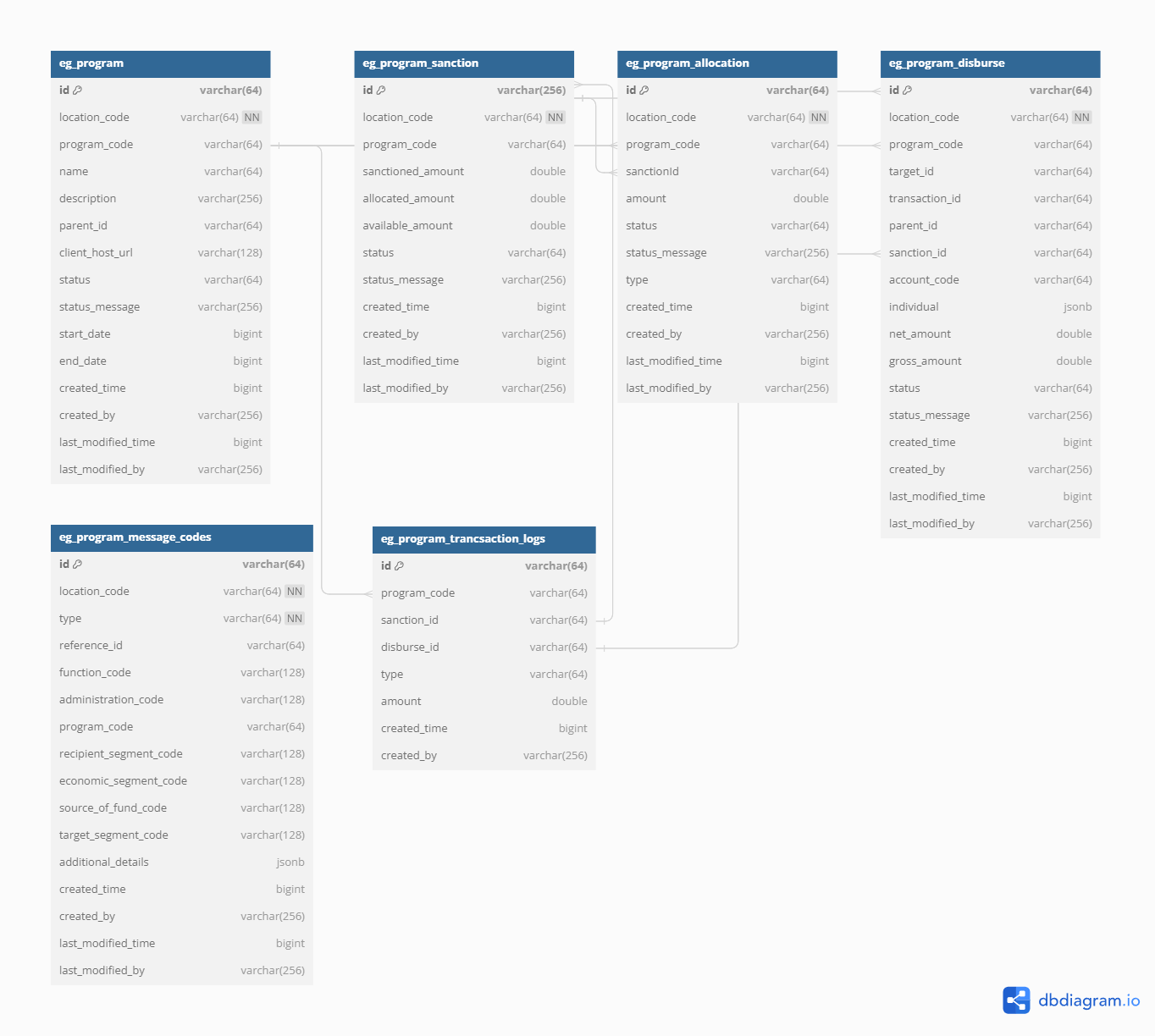

Program Service takes care of Program, Sanction, Allocation and Disbursement using the standardized exchange interface.

iFIX API Specification

API spec YAML is here. Click below to view it in Swagger Editor.

Swagger Editor

Implemented API Specifications

Base Path: /program-service/

API Contract Link

API spec YAML is here. Click below to view it in Swagger Editor.

Swagger Editor

APIs

Creates a program

post

Create programs in the system

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/program HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2882

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "create",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          {
            "name": "Community Development Initiative",
            "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
            "location_code": "pb.jalandhar",
            "program_code": "PORG/2023-24/00001",
            "transaction_id": "PI/2023-24/00001",
            "net_amount": 1000,
            "gross_amount": 1000,
            "individual": {
              "name": "John",
              "email": "[e-mail]",
              "phone": 9876543210,
              "pin": 110001,
              "address": "3476, Gali Bajrang Bali, Delhi"
            },
            "children": "[Circular Reference]",
            "status": {
              "status_code": "SUCCESSFUL",
              "status_message": "text"
            },
            "additional_details": {},
            "account_code": "1234567890@SBIN0003491",
            "function_code": "LIVELIHOOD",
            "administration_code": "HUDD",
            "recipient_segment_code": "CBO",
            "economic_segment_code": "PEOPLE",
            "source_of_fund_code": "STATE",
            "target_segment_code": "MALE",
            "currency_code": "INR",
            "locale_code": "LC007"
          }
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Update program after create response

post

Enables exchange of program related messages

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

messageall ofRequired

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/on-program HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2146

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "update",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          "[Circular Reference]"
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Create estimate

post

Creates estimate for the program.

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/estimate HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2882

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "create",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          {
            "name": "Community Development Initiative",
            "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
            "location_code": "pb.jalandhar",
            "program_code": "PORG/2023-24/00001",
            "transaction_id": "PI/2023-24/00001",
            "net_amount": 1000,
            "gross_amount": 1000,
            "individual": {
              "name": "John",
              "email": "[e-mail]",
              "phone": 9876543210,
              "pin": 110001,
              "address": "3476, Gali Bajrang Bali, Delhi"
            },
            "children": "[Circular Reference]",
            "status": {
              "status_code": "SUCCESSFUL",
              "status_message": "text"
            },
            "additional_details": {},
            "account_code": "1234567890@SBIN0003491",
            "function_code": "LIVELIHOOD",
            "administration_code": "HUDD",
            "recipient_segment_code": "CBO",
            "economic_segment_code": "PEOPLE",
            "source_of_fund_code": "STATE",
            "target_segment_code": "MALE",
            "currency_code": "INR",
            "locale_code": "LC007"
          }
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Update estimate after create

post

User can update the estimate if already created using on-estimate.

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/on-estimate HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2882

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "create",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          {
            "name": "Community Development Initiative",
            "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
            "location_code": "pb.jalandhar",
            "program_code": "PORG/2023-24/00001",
            "transaction_id": "PI/2023-24/00001",
            "net_amount": 1000,
            "gross_amount": 1000,
            "individual": {
              "name": "John",
              "email": "[e-mail]",
              "phone": 9876543210,
              "pin": 110001,
              "address": "3476, Gali Bajrang Bali, Delhi"
            },
            "children": "[Circular Reference]",
            "status": {
              "status_code": "SUCCESSFUL",
              "status_message": "text"
            },
            "additional_details": {},
            "account_code": "1234567890@SBIN0003491",
            "function_code": "LIVELIHOOD",
            "administration_code": "HUDD",
            "recipient_segment_code": "CBO",
            "economic_segment_code": "PEOPLE",
            "source_of_fund_code": "STATE",
            "target_segment_code": "MALE",
            "currency_code": "INR",
            "locale_code": "LC007"
          }
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Create sanction request

post

Create sanction request in the system, this sanction is linked with program.

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/sanction HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2882

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "create",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          {
            "name": "Community Development Initiative",
            "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
            "location_code": "pb.jalandhar",
            "program_code": "PORG/2023-24/00001",
            "transaction_id": "PI/2023-24/00001",
            "net_amount": 1000,
            "gross_amount": 1000,
            "individual": {
              "name": "John",
              "email": "[e-mail]",
              "phone": 9876543210,
              "pin": 110001,
              "address": "3476, Gali Bajrang Bali, Delhi"
            },
            "children": "[Circular Reference]",
            "status": {
              "status_code": "SUCCESSFUL",
              "status_message": "text"
            },
            "additional_details": {},
            "account_code": "1234567890@SBIN0003491",
            "function_code": "LIVELIHOOD",
            "administration_code": "HUDD",
            "recipient_segment_code": "CBO",
            "economic_segment_code": "PEOPLE",
            "source_of_fund_code": "STATE",
            "target_segment_code": "MALE",
            "currency_code": "INR",
            "locale_code": "LC007"
          }
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Update created sanction

post

Update staus of created sanciton request.

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/on-sanction HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2882

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "update",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          {
            "name": "Community Development Initiative",
            "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
            "location_code": "pb.jalandhar",
            "program_code": "PORG/2023-24/00001",
            "transaction_id": "PI/2023-24/00001",
            "net_amount": 1000,
            "gross_amount": 1000,
            "individual": {
              "name": "John",
              "email": "[e-mail]",
              "phone": 9876543210,
              "pin": 110001,
              "address": "3476, Gali Bajrang Bali, Delhi"
            },
            "children": "[Circular Reference]",
            "status": {
              "status_code": "SUCCESSFUL",
              "status_message": "text"
            },
            "additional_details": {},
            "account_code": "1234567890@SBIN0003491",
            "function_code": "LIVELIHOOD",
            "administration_code": "HUDD",
            "recipient_segment_code": "CBO",
            "economic_segment_code": "PEOPLE",
            "source_of_fund_code": "STATE",
            "target_segment_code": "MALE",
            "currency_code": "INR",
            "locale_code": "LC007"
          }
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Request to create allocation

post

User can request to create an allocation for sanction.

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/allocation HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2882

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "create",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          {
            "name": "Community Development Initiative",
            "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
            "location_code": "pb.jalandhar",
            "program_code": "PORG/2023-24/00001",
            "transaction_id": "PI/2023-24/00001",
            "net_amount": 1000,
            "gross_amount": 1000,
            "individual": {
              "name": "John",
              "email": "[e-mail]",
              "phone": 9876543210,
              "pin": 110001,
              "address": "3476, Gali Bajrang Bali, Delhi"
            },
            "children": "[Circular Reference]",
            "status": {
              "status_code": "SUCCESSFUL",
              "status_message": "text"
            },
            "additional_details": {},
            "account_code": "1234567890@SBIN0003491",
            "function_code": "LIVELIHOOD",
            "administration_code": "HUDD",
            "recipient_segment_code": "CBO",
            "economic_segment_code": "PEOPLE",
            "source_of_fund_code": "STATE",
            "target_segment_code": "MALE",
            "currency_code": "INR",
            "locale_code": "LC007"
          }
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Update allocation status

post

Update created allocation staus

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/on-allocation HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2882

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "create",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          {
            "name": "Community Development Initiative",
            "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
            "location_code": "pb.jalandhar",
            "program_code": "PORG/2023-24/00001",
            "transaction_id": "PI/2023-24/00001",
            "net_amount": 1000,
            "gross_amount": 1000,
            "individual": {
              "name": "John",
              "email": "[e-mail]",
              "phone": 9876543210,
              "pin": 110001,
              "address": "3476, Gali Bajrang Bali, Delhi"
            },
            "children": "[Circular Reference]",
            "status": {
              "status_code": "SUCCESSFUL",
              "status_message": "text"
            },
            "additional_details": {},
            "account_code": "1234567890@SBIN0003491",
            "function_code": "LIVELIHOOD",
            "administration_code": "HUDD",
            "recipient_segment_code": "CBO",
            "economic_segment_code": "PEOPLE",
            "source_of_fund_code": "STATE",
            "target_segment_code": "MALE",
            "currency_code": "INR",
            "locale_code": "LC007"
          }
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Initiate payment request

post

Create new disbursement request to initiate payment.

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

messageall ofRequired

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/disburse HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2146

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "create",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          "[Circular Reference]"
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Updated status of create disburse request

post

Updated status of create disburse request

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

messageall ofRequired

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/on-disburse HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2146

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "update",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          "[Circular Reference]"
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Initiate demand request

post

Create new demand request.

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

messageall ofRequired

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/demand HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2146

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "create",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          "[Circular Reference]"
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Updated create demand request

post

Updated create demand request

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

messageall ofRequired

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/on-demand HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2146

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "update",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          "[Circular Reference]"
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Initiate receipt request

post

Create new receipt.

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

messageall ofRequired

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/receipt HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2146

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "create",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          "[Circular Reference]"
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Updated status of create receipt request

post

Updated status of create receipt request

Body

signaturestringOptional

Signature of {header}+{message} body verified using sender's signing public key

Example: TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==

headerall ofRequired

and

messageall ofRequired

Responses

401

HTTP layer error details

application/json

403

HTTP layer error details

application/json

500

HTTP layer error details

application/json

default

Acknowledgement of message received after successful validation of message and signature

application/json

post

HTTPcURLJavaScriptPython

POST /ifix/v1/on-receipt HTTP/1.1
Host:
Content-Type: application/json
Accept: */*
Content-Length: 2146

{
  "signature": "TgE1hcA2E+YPMdPGz4vveKQpR0x+pgzRTlet52qh63Kekr71vWWScXqaRFtQW64uRFZGBUhHYYZQ2y6LffwnNOOQhhssaThhqVBhXNEwX9i75SNYXi5XSJVDYzSyHrhF20HW6RE9mAVWdc80i7d+FXlh+b/U+fnj+SrZ2s6Xd0WUZvU29LgqeUpyznlWLu1mDdJxNZavsDLWmxjTnknqBjDvwSc35WhFDhXDA2lWmm8YpZ1Y6TBmvvtVS7mAOTnhFy9sdCbrLcfXk5QWIsdzlvPqlkvdwEf30OZ6ewb680Aj3hO2OT5LCv7iLyz7C7srnB9lJT5gXiw+eSnktPXlDA==",
  "header": {
    "message_id": "251c51eb-e970-4e01-a99a-70136c47a934",
    "message_ts": 1708428280,
    "action": "update",
    "sender_id": "ifix@https://mukta.odisa.govt.org",
    "sender_uri": "https://mukta.odisa.govt.org/{namespace}/callback/on-search",
    "receiver_id": "ifix@https://ifms.odisa.govt.org"
  },
  "message": {
    "name": "Community Development Initiative",
    "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
    "location_code": "pb.jalandhar",
    "program_code": "PORG/2023-24/00001",
    "transaction_id": "PI/2023-24/00001",
    "net_amount": 1000,
    "gross_amount": 1000,
    "individual": {
      "name": "John",
      "email": "[e-mail]",
      "phone": 9876543210,
      "pin": 110001,
      "address": "3476, Gali Bajrang Bali, Delhi"
    },
    "children": [
      {
        "name": "Community Development Initiative",
        "linked_id": "sanction:251c51eb-e970-4e01-a99a-70136c47a934",
        "location_code": "pb.jalandhar",
        "program_code": "PORG/2023-24/00001",
        "transaction_id": "PI/2023-24/00001",
        "net_amount": 1000,
        "gross_amount": 1000,
        "individual": {
          "name": "John",
          "email": "[e-mail]",
          "phone": 9876543210,
          "pin": 110001,
          "address": "3476, Gali Bajrang Bali, Delhi"
        },
        "children": [
          "[Circular Reference]"
        ],
        "status": {
          "status_code": "SUCCESSFUL",
          "status_message": "text"
        },
        "additional_details": {},
        "account_code": "1234567890@SBIN0003491",
        "function_code": "LIVELIHOOD",
        "administration_code": "HUDD",
        "recipient_segment_code": "CBO",
        "economic_segment_code": "PEOPLE",
        "source_of_fund_code": "STATE",
        "target_segment_code": "MALE",
        "currency_code": "INR",
        "locale_code": "LC007"
      }
    ],
    "status": {
      "status_code": "SUCCESSFUL",
      "status_message": "text"
    },
    "additional_details": {},
    "account_code": "1234567890@SBIN0003491",
    "function_code": "LIVELIHOOD",
    "administration_code": "HUDD",
    "recipient_segment_code": "CBO",
    "economic_segment_code": "PEOPLE",
    "source_of_fund_code": "STATE",
    "target_segment_code": "MALE",
    "currency_code": "INR",
    "locale_code": "LC007"
  }
}

{
  "errors": [
    {
      "code": "text",
      "message": "text"
    }
  ]
}

Data Model

DB Schema

Web Sequence Diagrams

Program

Create Program

Update Program

Sanction

Sanction Create

Allocation

Allocation Create

Disbursal

Disbursal Create

Disbursal Update
