iFIX Fiscal Event Aggregator

Overview

Fiscal Event Aggregator is a Java standalone application, which runs as Cron Job to aggregate the fiscal event data from the Druid data store to Postgres DB.

Version History

Current Version: 2.0.0

Pre-requisites

Before you proceed with the configuration, make sure the following pre-requisites are met

  1. Java 8

  2. Druid DB & Postgres DB should be up and running

Features

Fiscal-Event-Aggregator computes the aggregate of data over a selected time period. Aggregator will apply the time range filter according to the following approach :

Fiscal periods will be picked up as per the current system time. The current year will be the current fiscal period starting from the 1st of April of the current year to the 31st March of (current year+1). And it will also aggregate the data of one previous fiscal year starting from the 1st of April of (current year -1) to the 31st of March of the current year.

Follow the steps below to aggregate the final fiscal event data as per the fiscal time periods.

  1. Group the sum of the amount based on department entity ancestry[6] id (attributes.departmentEntity.ancestry[6].id) that is GP (Gram Panchayat), COA (chart of account) id, and event type.

  2. Difference of the sum of the amount of "DEMAND" and "RECEIPT" event type with respect to distinct department entity ancestry[6] id (attributes.departmentEntity.ancestry[6].id) that is GP (Gram Panchayat).

  3. Difference of the sum of the amount of "BILL" and "PAYMENT" event type with respect to distinct department entity ancestry[6] id (attributes.departmentEntity.ancestry[6].id) that is GP(Gram Panchayat).

Upsert the final aggregated fiscal event data into the Postgres DB.

Environment

Note: Below environment variables need to be configured with respect to the environment

KeyValueDescription

DRUID_CONNECT_PROTOCOL

HTTP

This is a hardcoded value And wonโ€™t change w.r.t environment. And It depends upon the druid brokerโ€™s protocol that is getting used to connect.

DRUID_CONNECT_PORT

8082

This is a hardcoded value And wonโ€™t change w.r.t environment. It depends upon the druid broker protocol that we are using and the corresponding port of that druid broker.

DRUID_HOST

druid-broker.olap

this is kept under configmaps.

FISCAL_EVENT_DATASOURCE

fiscal-event

This is the data Source present in Druid DB. It is the same as defined in Druid DB.

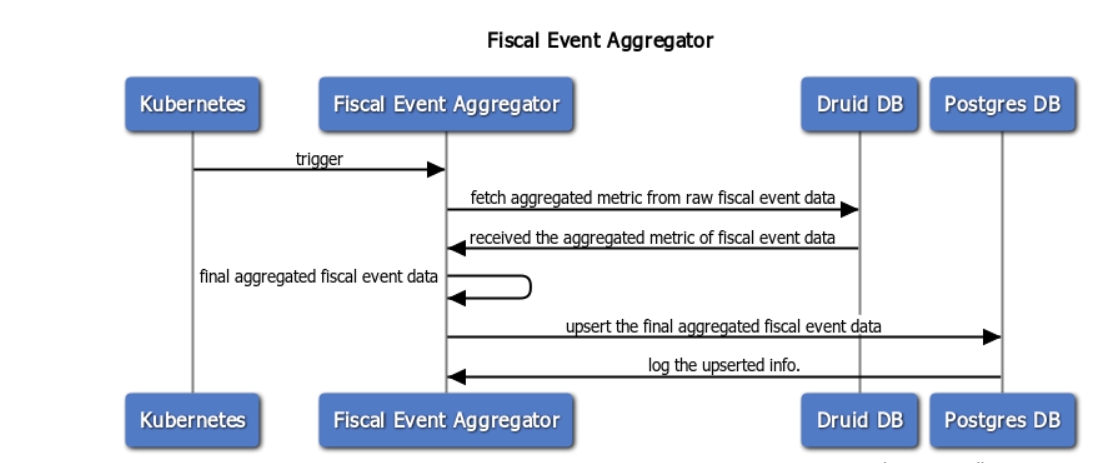

Interaction Diagram

Configuration

Update the configurations in the dev.yaml, qa.yml, prod.yaml file.
